GN Solids Control attended 2024 Beijing CIPPE Oil Equipment Show

This week GN solids control attend 2024 CIPPE oil show in Beijing. As one of the professional oil exhibition in China, we participate in CIPPE oil exhibition every year, to show our most advanced technology and equipments and meet with clients from domestic and worldwide.


This year we showed the equipments as below:
1. ViST vacuum screen technology to work with 4 panel shale shaker for drilling fluids recovery and reduce drilling waste, it can save money for operation on drilling fluids and drilling waste management. The ViST pan is installed under the last screen and connected to ViST vacuum unit. The air compressor or rig air supply should be provided to create suction on the last screen surface, it can reduce the liquid on the cuttings by 30% ~50%.


2. Sludge vacuum pump and vacuum cleaner, GNSP40B & GNSP10B, it is 100% air operated, no need electric power, suitable for hazardous area application, it can be used to transfer liquid, wet sludge and solids, it can transfer solids size Maximum 50mm or 75mm, sludge solids content up to 80%.


3. Vertical cuttings dryer GNCD930G-VFD
4. GNLW363D-VFD decanter centrifuge, it is the most popular model used for drilling fluids treatment, dewatering unit, mining tailings separation, etc.


5. GNLW554FT-VFD Decanter centrifuge
6. Screw conveyor GNSC14-12B with gratings cover, and addtional safety features: Full Length Safety Grab Wires along the auger, we could offer CNEX, ATEX, IEC EX for options.
7. 3 phase decanter centrifuge GNLWS364FT-VFD, it can be used to separate oil, solids and water. It is the major equipment for oil sludge separation system.


8. Shaker screens
9. 3 phase disc separator GNSD90, it can be used to separate oil, solids and water.
10. For more information of solids control equipments and drilling waste management equipments, pls contact with GN solids sales.

GN will show Second Generation 3 Phase Decanter Centrifuge at 2024 CIPPE Exhibition

GN solids control is going to participate in CIPPE 2024 exhibition next week, we will show the second generation three phase decanter centrifuge during the show. If you are interested in the 3 phase decanter centrifuge and want to know more information, welcome to visit GN stand at CIPPE 2024.
The exhibition information is as below:


Exhibition Name: The 24th China International Petroleum & Petrochemical Technology and Equipment Exhibition（CIPPE 2024）
Exhibition time: 25th-27th, March, 2024,
GN Booth No.: E2168
After moving to the new 80000m2 new facility, GN introduced new advanced machines and technologies, to develop more new equipments with new technology, the 3 phase decanter centrifuge is also updated according to our experience with clients. The 3 phase decanter centrifuge is widely used for oil sludge separation projects to separate oil, water, solids. The separation is flexible for different liquid phase proportion. The operator can use the adjustable impeller to adjust the pond depth of the heavy liquid conveniently during working. An adjustment mechanism causes the position of the impeller to change.


The bowl material is duplex stainless steel SS2205, the screw conveyor is made of duplex stainless steel SS2205, the screw propeller is protected by tungsten carbide tiles, the material distribution port and solids discharged port are protected by tungsten carbide insert, the bearing is made from SKF or NSK brand, the gearbox is planetary wheel type gearbox.
Except for the 3 phase decanter centrifuge, GN will also show ViST 4 panel shale shaker with electric driven vacuum unit, 14” decanter centrifuge with VFD system, GNLW554FT-VFD big bowl big volume decanter centrifuge for industrial waste treatment, 3 phase disc stack separator for oil sludge separation system, vertical cuttings dryer, vacuum pump GNSP-10B and GNSP-40B, screw conveyor GNSC14-12B, etc. For more details, pls contact with GN solids sales.

Drilling Cuttings Vertical Dryer System for Middle East Client

Recently one set of drilling cuttings vertical dryer system are ready for delivery to Middle East Client, the client just finished inspection before delivery to inspect the fitting and performance of the vertical cuttings dryer system.


The vertical cuttings dryer system consists of the equipments as below:
1. Vertical cuttings dryer GNCD930G
2. VFD decanter centrifuge GNLW363D-VFD
3. Screw conveyor 2 sets, one as flushing pump of vertical cuttings dryer, one as feeding pump of decanter centrifuge, their control is inside the control panel of vertical cuttings dryer and decanter centrifuge. The decanter centrifuge VFD control panel
4. Screw conveyor, to transfer the drilling cuttings to vertical dryer system continuously. GN produced screw conveyor have been widely used to transfer drilling cuttings, waste sludge with high solids content but less moisture, industrial waste, etc. materials in the world. GN screw conveyor with each section standard length of 12ft, we can make it with different numbers of sections for different transfer length, as 12 ft with 1 section, 24 ft with 2 sections, 36ft with 3 sections, 48ft with 4 sections. There are sealing rubber between sections and fastened with bolts. The connecting shaft between the middle section and the adjacent blade shaft should be securely fastened with bolts, and the blades at both ends of the hinge bearing should have continuity. When the screw conveyor is installed slantly, GN produced telescopic bracket can be used for angle adjustment. The closed plate cover or grating cover can be selected as requirement.
5. Telescopic skid for decanter centrifuge and vertical cuttings dryer on one skid, for convenient transportation and operation. The telescopic skid can be made as integral skid or separate skid according to the site’s requirement.
If you need a customized solution for drilling cuttings treatment system, pls contact with GN solids sales engineer.

Vacuum Degasser and Mud Agitator for China Oilfield Service Company

Several sets of vacuum degasser and mud agitators are ready for delivery to China oil oilfield service company.


GN solids control can provide different types mud agitator for different application, including coupler connection mud agitator, direct connection mud agitator, vertical mud agitator, etc. The gearbox to be used with mud agitator is heavy duty helical bevel type gearbox for reliable operation, especially suitable for heavy mud. We will install different explosion proof standard motor for different project’s requirement, control panel can be optional as client’s requirement, such as IEC EX, ATEX, CNEX, etc. The impeller size and shaft length can be customized as your mud tank dimension.
When the agitator impeller come into contact with the drilling fluids, it forces it to generate vortex motion, thereby preventing the sedimentation of solid particles in the drilling mud, achieving the effect of uniform mixing of solid and liquid phases and consistent density. The connecting plate sandwiched in the middle of the impeller can prevent the solid particles of mud from depositing in the lower part of the impeller after shutdown, thereby reducing the resistance of solid materials to the impeller when starting again, and avoiding the accident of burning the motor due to starting overload. When motor is running, it drives the input shaft of the gearbox to rotate through the rotation of the motor. The output shaft of the gearbox drives the mixing shaft to rotate through a rigid coupling, and the mixing shaft is connected to the impeller through bolts for transmission.
To select proper quantity and model mud agitator for the solids control system mud tank, we will clear the drilling fluids density, mud tank dimension, equipments list, etc. information, then we will select proper model for our client.


For more information of GN vacuum degasser and mud agitator, pls contact with GN solids control.

Centrifugal Pump and Solids Control Centrifuge for Africa Client

Recently 2 set of 1500HP drilling rig solids control equipments are ready for delivery to our Africa client. The equipments list including:


6 units of GNZS594J-SHBJ linear motion shale shaker, which is a single deck 4 panel high G force shale shaker. 3 units shale shaker per rig, total treating capacity can reach at least 1500gpm. The shaker screen installed on the shale shaker is produced compliant with API RP 13C standard. Not only for OEM shaker screens for GN own shale shaker, we also produce replacement shaker screens for world famous brand shale shaker. Pls contact with GN solids control for more information.

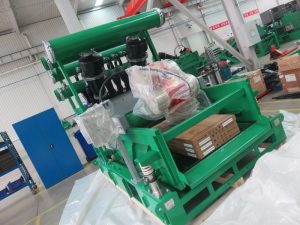

3 units of GNZJ594J-2S12N linear motion mud cleaner, the bottom shale shaker is same with the linear motion shale shaker, combined with 2 ea 10 inch desander cone and 12 ea of 4 inch desilter cone, the treating capacity is up to 1000gpm. It can be also act as back up shale shaker if required.
16 units of centrifugal pump, the centrifugal pump can be used as feeding pump of desander cone and desilter cone, it can be also used as trip pump, mixing pump, transfer pump, super charging pump.


2 units of GNLW452 decanter centrifuge, this is a middle speed decanter centrifuge which can be used for barite recovery, the separation cut point is 5~7 microns. If for low gravity solids separation, we can utilize high speed decanter centrifuge to separate the fine solids, or VFD decanter centrifuge can be introduced to be used for both barite recovery and LGS separation.


Except for the above equipments, GN solids control also provide vacuum degasser, mud agitator, mud gun,mixing hopper, mud gas separator, mud tank system, etc. We also provide decanter centrifuge, vertical cuttings dryer, high G drying shaker , screw conveyor, etc. drilling waste management equipments.
