Track Mounted Mud Treatment System for Australia Customer

Track Mounted Mud Treatment System video:
https://www.gnsolidscontrol.com/video/track-mounted-mud-system-video

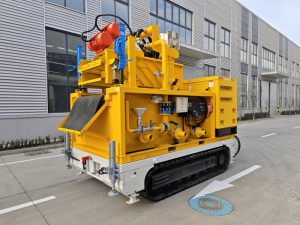

A track mounted mud treatment system is a mobile, self-contained system commonly used in geothermal wells and water well drilling. This system is designed for easy mobility, making them suitable for operations in remote or hard to reach locations. GN produced track mounted mud treatment system – composed of modules such as track platform, mud treatment system, and generator.


The mud treatment system is fixed with the track platform, the mud cleaner GNZY754K-Y6N is combination of 6ea 4 inch hydrocyclones installed on top of double deck shale shaker, the top screen area is 1.35m2, the bottom screen area is 1.35m2, the separation cut point is 15 ~ 20 microns. The treating capacity is up to 500gpm. The century mixing hopper and mixing pump are installed on the mud tank for the mud mixing if need. The whole system is within the track platform, which can be loaded into the 40ft container. The total power of the mud system is 11KW, the generator installed on the track system can support both of the mud treatment system and track drive. It can be remotely controlled to walk, move forward and backward, turn, and climb slopes, meeting different road conditions.


Features of GN track mounted mud treatment system:
Integrated design, compact structure, easy and quick to move
Mobility: Being track-mounted, the system can easily be moved around to different locations on a site, making it ideal for operations that require mobility.
Reduced Environmental Impact: By recycling and reusing the drilling fluids, these systems help minimize environmental damage caused by disposal of contaminated waste.
Efficient Waste Management: These systems streamline the mud cleaning process, ensuring that waste is efficiently processed and reducing downtime.
Cost-Effective: Reusing treated mud can lower the cost of drilling fluids, and the mobility reduces the need for transporting waste to disposal sites.

1000HP Drilling Rig Mud Tank System for China Drilling Company

Recently one set of 1000HP rig mud tank system are ready for delivery for China drilling company. This is a customized mud tank system according to client’s requirement, the technical configuration is as below:


4 sets of mud tanks with tank accessories, electric control system
Drilling fluids shale shaker: GNZS594K, 2 units , this is the updated model of GNZS594J shale shaker, equipped with 4 panel shaker screens, total screen area is up to 2.73m2, it is drived by 2ea of Italy Oil brand vibration motor, the vibration strength is up to 7.6G and it is adjustable, the deck angle is adjustable mechanically while operation. The shaker screen is also produced by GN solids control which is produced compliant with API RP13C standard.


Mud cleaner: 1 unit of GNZJ594K-2S12N, it is a combination of 2 ea desander cone, 12 ea desilter cone and GNZS594K bottom shale shaker, the treating capacity is 1000gpm.
Vacuum degasser: GNZCQ270, 1 unit
Middle speed decanter centrifuge for barite recovery: GNLW452DS, as one of the professional decanter centrifuge manufacturer in China, GN solids control can produce different size different volume decanter centrifuge, including 9 inch mini decanter centrifuge for solids removal unit waste water treatment; 14 inch bowl decanter centrifuge which can be used for drilling mud treatment, drilling waste treatment, dewatering system, oil sludge treatment system, waste water treatment; 18 inch bowl decanter centrifuge can be used as barite recovery decanter centrifuge, solids control centrifuge, drilling waste treatment system, etc; Also we have big bowl big volume centrifuge such as 22 inch bowl decanter centrifuge, 30 inch bowl decanter centrifuge, three phase decanter centrifuge, etc.


Centrifugal pump: 4 units and Mud agitator, mud gun, mixing hopper, mixing pump, etc.
If you need a customized drilling rig solids control system, pls contact with GN solids sales.

GN New Separation Equipment Showroom

Recently GN New Separation Equipment Showroom is officially put into use.
GN Showroom Including Company Profile Module, Industry Application Module, Separation Equipment Display Module, GN Company Profile, GN Certificates, National Level Key Small Giant Company, GN Company Milestone, GN Global Case References, GN Main Separation Equipments, Drilling mud Solids Control Equipments, Waste water Treatment Equipment, Mining Screening Equipment, etc. After visiting the new separation eqiupments showroom, we will invite our clients and partners to visit GN workshop, production machines, technology and more operation videos and global cases. Additionally, there is big space with proper equipment for big mud tank system assembly and commissioning.


As one of the solids control equipments, drilling waste management equipments, shaker screens, mud tank system, various size decanter centrifuge, 3 phase decanter centrifuge, separation equipments manufacturer in China, GN solids control/ GN separation’s new facility is put into use officially in October of 2023. With the new showroom in use, the clients can understand our equipments, technologies and experience more comprehensive, intuitive, and effective.


Main equipments produced by GN solids control:
Linear motion shale shaker, mud cleaner, desander, desilter, drilling mud decanter centrifuge, vacuum degasser, mud agitator, mud tank, centrifugal pump, mixing hopper, shaker screens.
Vertical cuttings dryer, waste treatment decanter centrifuge, dewatering centrifuge, feed pump, screw conveyor, high G drying shaker, chemical dosing unit, Inclined Plate Clarifier.
Drilling waste management system, Oil sludge treatment system, solids control system, HDD mud recycling system, TBM & Piling desander unit, tank cleaning unit, solids removal unit, liquid mud plant, etc.


Additionally, every year GN solids control will participate in professional exhibitions of oil & gas industry in the world and show our lastest products and technology, such as CIPPE, OTC, ADIPEC, etc.


Welcome to contact with GN solids control/ GN separation and visit our new facility and new showroom.

Trailer mounted mud tank and screw conveyor for Kuwait Client

Recently one batch of trailer mounted mud tanks and screw conveyors are delivered to our Kuwait client.


As one of the mud tank system manufacturer in China, GN solids control can design and produce customized mud tanks and complete line of drilling rig solids control system according to our client’s requirement. Except for trailer mounted mud tank, we can also produce skid mounted mud tank, track mounted mud tank, containerized mud tank, liquid mud plant, also we can design and produce complete oil & gas drilling rig solids control system, HDD & CBM mud recycling system, TBM &Piling slurry separation unit, drilling waste management system for OBM and WBM, oil sludge separation system.


We have professional technical engineers team for 3D Simulation Design of mud tank systems to present technical solutions to the customers intuitively for convenient technical communication, also we can share design modules with users to facilitate the configuration of the overall drilling rig.

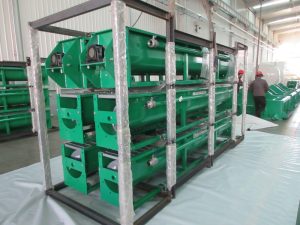

The U-type screw conveyor produced by GN solids control is with standard each section 12 feet, we can produce 10 inch ,12 inch, 14 inch, 16 inch and 18 inch screw diameter, the top cover is optional with steel gratings and closed plate according to client’s requirement, with reinforcing beam for gearmotor and auger body, for long lifetime. With additional safety features: Full Length Safety Grab Wires along the auger; The local control panel including the control for Grap wire switch; Audio / visual alarm system on auger control panel.
By introducing large CNC laser plate cutting machine, large CNC laser pipe and profile cutting machine,mud tank corrugated plate automatic forming machine,CNC bending machine and robotic welding production line, GN solids control can produce high strength, good performance mud tanks with lower production cost. Welcome to visit GN facility to check our production line and mud tanks.
